MAJOR-TECH ELECTRICAL INSTRUMENT KIT

1. MT330 – Earth Resistance Tester
2. MT350 – Loop Impedance and PSC Tester
3. MT550 – 1000V Digital Insulation Tester
4. MT720 – 400A AC Clamp Meter
5. MT310 – ELCB Tester
6. MT930 – Phase Rotation Meter
7. MT1877 – 1000V IP67 True RMS Multimeter
8. MTKBAG – Heavy Duty Meter Case

PRODUCT FEATURES

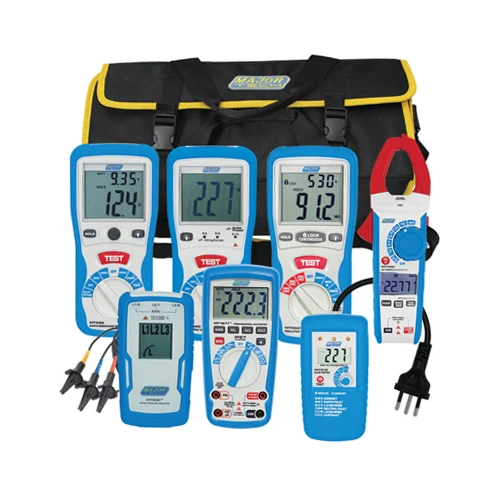

The MTK25 is a contractors kit which includes an earth resistance tester, loop impedance and PSC tester, digital insulation tester, phase rotation meter, clamp meter, ELCB tester and multimeter in a heavy duty meter case.

1. MT330 – Earth Resistance Tester
2. CAT IV 600V and CAT III 1000V
3. Earth Resistance 2000Ω
4. Earth voltage to 200V
5. Indicates if resistance of auxiliary spikes is within tolerance
6. Direct readout of the earth resistance on the LCD display
7. 750V AC & 1000V DC
8. Overrange indicator
9. Zero adjustment of leads
10. Data Hold
11. Overmould casing
12. Dual LCD with backlight
13. Ideal for earth rods and lightning conductors
14. MT350 – Loop Impedance and PSC Tester
15. CAT IV 600V and CAT III 1000V
16. Custom microprocessor controlled for highest accuracy and reliability
17. Loop impedance of 2000Ω range measurement is carried out with low test current (15mA)
18. Automatic Lock-Out if Test Resistor Overheats
19. Direct readout of Prospective Short Circuit Current and Earth Fault Current
20. Measures low loop impedance of 0.01Ω
21. 3 LED’s for checking correct wiring status
22. Safe voltage measurement function
23. Visual indication of reversed phase and neutral at wiring socket
24. MT550 – 1000V Digital Insulation Tester
25. CAT IV 600V and CAT III 1000V
26. Three test ranges 250V-500V-1000V
27. 750V AC voltage and 1000V DC voltage ranges
28. Live Circuit warning and buzzer
29. Data Hold function
30. 1mA output current on insulation test
31. 200mA short circuit on continuity range
32. Continuity Buzzer
33. Automatic discharge after test
34. Lock down Test Button for continuous use
35. MT720 – 400A AC Clamp Meter
36. CAT III 600V and CAT II 1000V
37. 4000 count backlit LCD display
38. Ø30mm Cable Clamp size
39. Measurement of DC voltage and AC voltage up to 1000V
40. Capacitance to 100mF
41. Temperature measurement from -20⁰C to 1000⁰C
42. INRUSH Current Measurements
43. VFD – Variable Frequency Drive voltage value
44. NCV – Non-Contact Voltage Detector
45. Continuity buzzer and Diode Test
46. Peak Mode and Data Hold function
47. MT310 – ELCB Tester
48. CAT IV 300V and CAT III 600V
49. Compact, lightweight and easy to use
50. Correct Wiring Indication with neon lights
51. Operates on 230V systems
52. AC Voltage measurement on LCD display
53. Fixed current settings from 10mA to 35mA
54. Separate test button
55. Double injection rubber housing
56. MT930 – Phase Rotation Meter
57. CAT IV 300V and CAT III 600V
58. Large LCD Display
59. Phase rotation indication
60. 3-Phase Indication
61. Checks phase sequence and open phase simultaneously
62. Double injection rubber housing
63. Small lightweight and portable
64. Can check a wide range of 3-phase power source from 40V to 850V AC
65. Large size crocodile clips
66. MT1877 – 1000V IP67 True RMS Multimeter
67. CAT IV 600V and CAT III 1000V
68. IP67 Dust & Waterproof double moulded housing
69. Measures AC and DC Voltage to 1000V
70. Measures Resistance up to 40MΩ
71. Measures Frequency range on Electronic and Electrical Circuits
72. Capacitance to 100µF
73. Non-contact voltage detector above 110V AC, the LCD turns red
74. Duty Cycle
75. 4000 Count LCD
76. Full Ranges Protection
77. MTKBAG – Heavy Duty Meter Case
78. Carrying case to house a range of meters the user needs to carry at any one time
79. Specially designed by Major Tech to be compact with a shoulder strap
80. Adjustable compartments for bigger instruments or tools
81. Pocket for instruction manuals or documentation
82. Size – 220mm (H) x 450mm (W) x 200mm (D)
