SCHNEIDER ENERGY SENSOR

1. Range of product: PowerLogic
2. Product name: PowerTag A9 M63
3. Poles: 1P
4. Maximum current: 63 A
5. [Ib] Basic Current: 10 A
6. Starting current: 40 mA
7. Saturation current: 130 A
8. Product specific application: Load monitoring, Overload alarm, Cost allocation, Circuit monitoring, Energy management
9. Concentrator Compatibility: Acti9 Smartlink SI B, Acti9 Smartlink SI D, Acti9 PowerTag Link C, Acti9 PowerTag Link, Acti9 PowerTag Link HD, Wiser IP module, EcoStruxure Panel Server Universal, EcoStruxure Panel Server Advanced, PrismaSet Active.
10. Range compatibility: Acti 9 Acti9 iKQE RCBO, Multi9 Multi9 C60, Multi9 Multi9 ID, Multi9 Multi9 C32N, Multi9 Multi9 C65, Acti 9 Acti9 iID, Acti 9 Acti9 iID K, Acti 9 Acti9 iK60, Acti 9 Acti9, iKQ, Acti 9 Acti9 K60, Acti 9 Acti9 Reflex iC60, Acti 9 Acti9 iC65, Acti 9 Acti9 DT60, Acti 9 Acti9 iC60 Single Terminal.
11. Type of measurement: Voltage, Power factor, Active energy, Current, Active power
12. Mounting location: Top or bottom
13. Mounting Support: On circuit breaker
14. Product destination: Switchboard
15. Transmission: Radio frequency 2.4…2.4835 GHz
16. Mounting mode: By screws (terminals)
17. Electrical connection (voltage sensing & power supply): Connector tooth and wire
18. Cable cross section: 1 rigid cable 1.5…16 mm², 2 stranded cable 1.5…2.5 mm², 2 rigid cable 1.5…2.5 mm², 1 stranded cable 1.5…16 mm²
19. Cable length: 1 m
20. Height: 16.5 mm
21. Width: 18 mm
22. Depth: 43 mm
23. Net Weight: 16.4 g
24. Code: A9MEM1520

PRODUCT FEATURES

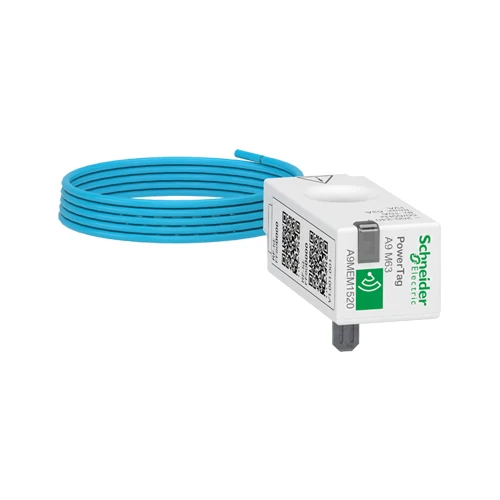

1. This PowerTag Energy M63 1P+Wire is a wireless communication energy sensor.
2. It is dedicated to Acti9 and Multi9 1P Monoconnect devices rating less than or equal 63A.
3. The neutral blue wire is to be connected to a neutral terminal block.
4. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level.
5. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications.
6. It incorporates accurate real-time measurements of active energy, active power, current, voltage and power factor.
7. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized.
8. PowerTag Energy 63A complies with IEC 61557-12 standard.
9. It is a PMD-I/DD/K55/1.
10. The Performance category is Class 1.
11. The Imax Maximum current is 63A.
12. The Ib Base current is 10A.
13. The Saturation current is 130A.
14. The Ist Starting current is 40mA.
15. The Un rated voltage is Phase-to-neutral 200VAC to 240VAC +/- 20%.
16. The maximum consumption is below or equal to 1VA.
17. It can be either mounted on the top or the bottom of the protective device.
18. The product color is white (RAL9003).
19. The weight is 16,4g.
20. The degree of protection is IP20 and IK05
21. The operating temperature is between -25°C to +60°C.
22. The Storage temperature is between -40°C to +85°C.
