SCHNEIDER ENERGY SENSOR

1. Range of product: PowerLogic.
2. Product name: PowerTag A9 M63.
3. Product or component type: Energy sensor.
4. Poles: 3P.
5. Maximum Current [Imax]: 63 A.
6. [Ib] Basic Current: 10 A.
7. Starting Current: 40 mA.
8. Saturation Current: 130 A.
9. Product Specific Application: Circuit Monitoring, Cost Allocation, Load Monitoring, Overload Alarm, Energy Management.
10. Concentrator Compatibility: Acti9 Smartlink SI B, Acti9 Smartlink SI D, Acti9 PowerTag Link C, Acti9 PowerTag Link, Acti9 PowerTag Link HD, Wiser IP Module., EcoStruxure Panel Server Universal, EcoStruxure Panel Server Advanced, PrismaSet Active.
11. Range Compatibility: Acti 9 Acti9 iKQE RCBO, Multi9 Multi9 C60, Multi9 Multi9 ID, Multi9 Multi9 C32N, Multi9 Multi9 C65, Acti 9 Acti9 iID, Acti 9 Acti9 iID K, Acti 9 Acti9 iK60, Acti 9 Acti9 iKQ, Acti 9 Acti9 K60, Acti 9 Acti9 Reflex iC60, Acti 9 Acti9 iC65, Acti 9 Acti9 DT60, Acti 9 Acti9 iC60 single terminal.
12. Type of measurement: Active Power, Current, Voltage, Power Factor, Active Energy.
13. Mounting Location: Top or bottom.
14. Mounting Support: On Circuit Breaker.
15. Product Destination: Switchboard.
16. Transmission Support Medium: Radio frequency 2.4…2.4835 GHz.
17. Emission Power: 10 mW.
18. Mounting Mode: By screws (terminals).
19. Electrical Connection (voltage sensing & power supply): Connector tooth.
20. Cable cross section: 1 rigid cable 1.5…16 mm², 2 stranded cable 1.5…2.5 mm², 2 rigid cable 1.5…2.5 mm², 1 stranded cable 1.5…16 mm².
21. Supply Voltage: 380…415 V AC, +/- 20 %, between phases
22. Height: 16.5 mm
23. Width: 54 mm
24. Depth: 43 mm
25. Net weight: 28 g
26. IP Degree of Protection: IP20 conforming to IEC 60529.
27. IK Degree of Protection: IK05
28. Code: A9MEM1540

PRODUCT FEATURES

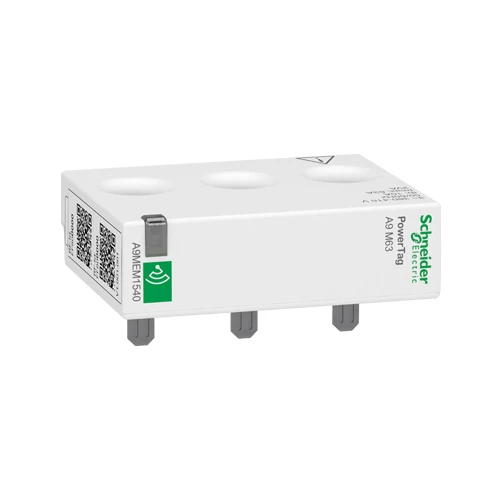

1. This PowerTag Energy M63 3P is a wireless communication energy sensor.
2. It is dedicated to Acti9 and Multi9 3P Monoconnect devices with 18mm pitch between phase and neutral, rating less than or equal 63A.
3. It has to be associated with a concentror or a gateway to provide circuit monitoring and diagnosis down to load level.
4. It is designed specifically for Energy Management, Load Monitoring and Power Availability applications.
5. It incorporates accurate real-time measurements of active energy, active power, current, voltage and power factor.
6. In case of power outage, it sends a voltage loss alarm and the current-per-phase value before being de-energized.
7. PowerTag Energy 63A complies with IEC 61557-12 standard.
8. It is a PMD-I/DD/K55/1.
9. The Performance category is Class 1.
10. The Imax Maximum current is 63A.
11. The Ib Base current is 10A.
12. The Saturation current is 130A.
13. The Ist Starting current is 40mA.
14. The Un rated voltage is Phase-to-phase 380VAC to 415VAC +/- 20%.
15. The maximum consumption is below or equal to 2VA.
16. It can be either mounted on the top or the bottom of the protective device.
17. The product color is white (RAL9003).
18. The weight is 28g.
19. The degree of protection is IP20 and IK05.
20. The operating temperature is between -25°C to +60°C.
21. The Storage temperature is between -40°C to +85°C.
