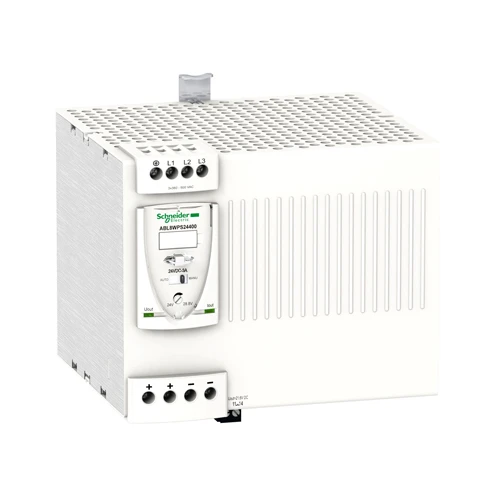

SCHNEIDER REGULATED SWITCH MODE POWER SUPPLY (SMPS)

1. Range of Product: Modicon Power Supply
2. Component Type: Power Supply
3. Power Supply Type: Regulated Switch Mode
4. Nominal Input Voltage: 100-120 VAC single phase, terminal(s): N-L1 / 200-240 VAC phase to phase, terminal(s): L1-L2
5. Rated Power: 480 W
6. Output Voltage: 24 VDC
7. Power Supply Output Current: 20A
8. Permissible Temporary Current Boost: 1.5 x In (for 4 s)
9. Anti-Harmonic Filter: Low Frequency Harmonic Currents
10. Input Voltage Limits: 85-132 VAC / 170-264 VAC
11. In-Rush Current: 30A
12. Power factor: 0.68 at 240 VAC / 0.69 at 120 VAC
13. Efficiency: 88 %
14. Output Voltage Adjustment: 24-28.8 V Adjustable
15. Power Dissipation: 57.6 W
16. Provided Equipment: Power factor correction filter conforming to IEC 61000-3-2
17. Output Protection Type: Against Overload, Protection Technology: Manual / Auto Reset, Against Overvoltage, Protection Technology: 30-32V, Manual Reset, Against Short-Circuits, Protection
18. Technology: Manual / Auto Reset, Against undervoltage, protection technology: tripping if U < 21.6 V, Thermal, protection technology: automatic reset
19. Status LED: 1 LED (green and red) output voltage, 1 LED (green, red and orange) output current
20. Depth: 145mm
21. Height: 125mm
22. Width: 146mm
23. Net weight: 1.6kg
24. Output coupling: Series / Parallel
25. Mounting support: 35 x 7.5 mm + 35 x 15 mm symmetrical DIN rail
26. Warranty: 18 months
27. Code: ABL8RPM24200

PRODUCT FEATURES

1. This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage.
2. It has a rated input of 100V to 240V AC, a rated output current of 20A at 24V DC and a rated power output of 480W.
3. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water.
4. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers.
5. It has LED diagnostics indicator available in the front for troubleshooting instantly.
6. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process.
7. It installs on DIN rail and is 54mm-wide.
8. It weighs 1,600kg.
9. It is a power supply for industrial use, rail mounting.
10. It conforms to UL 508, CSA C22.2 No 60950-1 standards.
11. The GB2CD16, GB2CD12, GB2CB07, GB2CD07, GB2DB07, GB2CS07, GB2CB06, GB2CD06, GB2DB06 and GB2CS06 thermal-magnetic circuit breakers are recommended for its protection.
12. It has LED diagnostics indicator available in the front for troubleshooting instantly.
13. It installs on DIN rail.
14. It brings energy to your automated systems.
15. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
