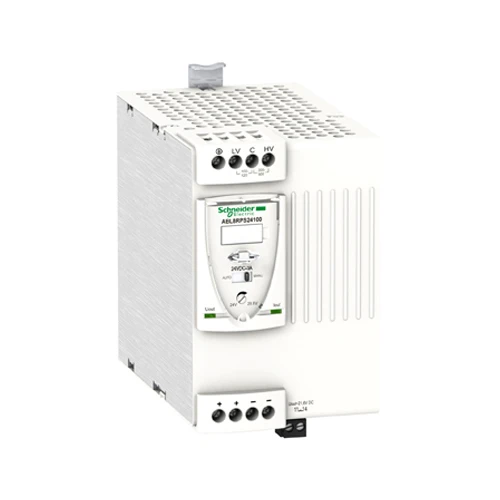

SCHNEIDER REGULATED SWITCH MODE POWER SUPPLY (SMPS)

1. Range of Product: Modicon Power Supply
2. Component type: Power supply
3. Power supply type: Regulated switch mode
4. Nominal input voltage: 100-120VAC single phase, terminal(s): N-L1 / 200…500VAC phase to phase, terminal(s): L1-L2
5. Rated Power: 240W
6. Output voltage: 24 VDC
7. Power supply output current: 10A
8. Permissible temporary current boost: 1.5 x In (for 4 s)
9. Anti-harmonic filter: Low frequency harmonic currents
10. Input voltage limits: 170…550 VAC / 85-132 VAC
11. In-Rush Current: 30 A
12. Power factor: 0.68 at 240VAC / 0.69 at 120VAC
13. Efficiency: 87 %
14. Output voltage adjustment: 24-28.8V
15. Power Dissipation: 31 W
16. Provided Equipment: Power factor correction filter conforming to IEC 61000-3-2
17. Output Protection Type: Against overload, protection technology: manual or automatic reset, Against overvoltage, protection technology: 30…32 V, manual reset, Against short-circuits, protection technology: manual or automatic reset, Against undervoltage, protection technology: tripping if U < 21.6 V, Thermal, protection technology: automatic reset
18. Status LED: 1 LED (green and red) output voltage, 1 LED (green, red and orange) output current
19. Depth: 145mm
20. Height: 125mm
21. Width: 86mm
22. Net Weight: 1kg
23. Output Coupling: Parallel / Series
24. Mounting Support: 35 x 7.5 / 35 x 15 mm Symmetrical DIN rail
25. Operating position: Vertical
26. Warranty: 18 months
27. Code: ABL8RPS24100

PRODUCT FEATURES

1. This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage.
2. It has a rated input of 100V to 500V AC, a rated output current of 10A at 24V DC and a rated power output of 240W.
3. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water.
4. It is also equipped with a PFC (Power Factor Correction) filter.
5. It has LED diagnostics indicator available in the front for troubleshooting instantly.
6. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers.
7. It installs on DIN rail and is 85mm-wide.
8. It weighs 1kg.
9. It is a power supply for industrial use, rail mounting.
10. It conforms to UL 508, CSA C22.2 No 60950-1 standards.
11. The GB2CD08, GB2CD12, GV2RT07, GV2ME07 thermal magnetic circuit breakers are recommended for its protection.
12. It has LED diagnostics indicator available in the front for troubleshooting instantly.
13. It installs on DIN rail.
14. It brings energy to your automated systems.
15. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
