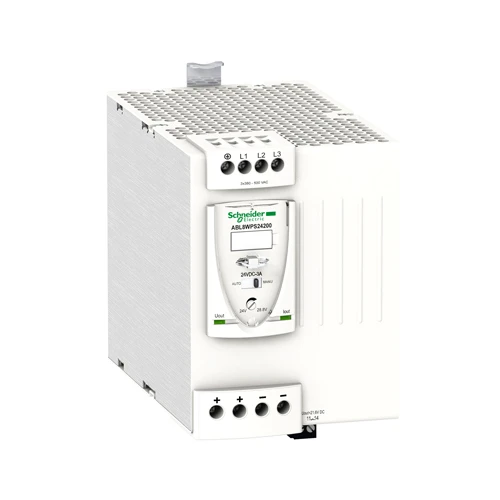

SCHNEIDER REGULATED SWITCH MODE POWER SUPPLY (SMPS)

1. Range of Product: Modicon Power Supply
2. Component Type: Power Supply
3. Power Supply Type: Regulated switch mode
4. Nominal Input Voltage: 380-500 VAC Three Phase, Terminal(s): L1, L2, L3
5. Rated Power: 480W
6. Output Voltage: 24 VDC
7. Power Supply Output Current: 20A
8. Permissible Temporary Current Boost: 1.5 x In (for 4 s)
9. Anti-Harmonic Filter: Low Frequency Harmonic Currents
10. Input Voltage Limits: 320-550 VAC
11. In-Rush Current: 25A
12. Power Factor: 0.65 at 24VDC
13. Efficiency: 92 %
14. Output Voltage Adjustment: 24-28.8V
15. Power Dissipation: 38.4W
16. Provided Equipment: Power Factor Correction Filter Conforming to IEC 61000-3-2
17. Output Protection Type: Against overload, protection technology: manual or automatic reset, Against overvoltage, protection technology: 30-32 V, manual reset, Against short-circuits,
18. protection technology: manual or automatic reset, Against undervoltage, protection technology: tripping if U < 21.6 V, Thermal, protection technology: automatic reset.
19. Status LED: 1 LED (green and red) output voltage, 1 LED (green, red and orange) output current.
20. Depth: 160mm
21. Height: 143mm
22. Width: 96mm
23. Net Weight: 1.6kg
24. Output Coupling: Series / Parallel
25. Mounting Support: 35 x 7.5 / 35 x 15 mm symmetrical DIN rail
26. Operating Position: Vertical
27. Warranty: 18 months
28. Code: ABL8WPS24200

PRODUCT FEATURES

1. This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage.
2. It has a rated input of 380V to 500VAC, a rated output current of 20A at 24VDC and a rated power output of 480W.
3. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water.
4. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers.
5. It has LED diagnostics indicator available in the front for troubleshooting instantly.
6. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process.
7. It is a power supply for industrial use, rail mounting.
8. It conforms to CSA C22.2 No 60950-1 and UL 508.
9. It is certified with CCSAus, EAC, UL and RCM.
10. The GV2ME06 thermal magnetic circuit breaker is recommended for its protection.
11. It has LED diagnostics indicator available in the front for troubleshooting instantly.
12. It installs on DIN rail.
13. It brings energy to your automated systems.
14. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
