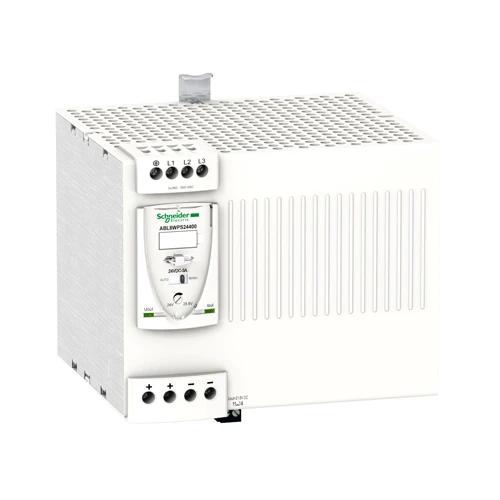

SCHNEIDER REGULATED SWITCH MODE POWER SUPPLY (SMPS)

1. Range of Product: Modicon Power Supply.
2. Component Type: Power supply.
3. Power Supply Type: Regulated Switch Mode.
4. Nominal Input Voltage: 380-500 VAC Three Phase, Terminal(s): L1, L2, L3.
5. Rated Power: 960W.
6. Output Voltage: 24 VDC.
7. Power Supply Output Current: 40 A.
8. Permissible Temporary Current Boost: 1.5 x In (for 4 s).
9. Anti-Harmonic Filter: Low Frequency Harmonic Currents.
10. Input Voltage Limits: 320-550 VAC.
11. In-Rush Current: 25A.
12. Power Factor: 0.85 at 24VDC.
13. Efficiency: 92 %.
14. Output Voltage Adjustment: 24-28.8 V.
15. Power Dissipation: 76.8 W.
16. Provided Equipment: Power Factor Correction Filter Conforming to IEC 61000-3-2.
17. Output Protection Type: Against overload, protection technology: manual or automatic reset, Against overvoltage, protection technology: 30…32 V, manual reset, Against short-circuits,
18. protection technology: manual or automatic reset, Against undervoltage, protection technology: tripping if U < 21.6 V, Thermal, protection technology: automatic reset.
19. Status LED: 1 LED (green and red) output voltage, 1 LED (green, red and orange) output current.
20. Depth: 160mm.
21. Height: 143mm.
22. Width: 166 mm.
23. Net Weight: 2.7 kg.
24. Output coupling: Parallel / Series.
25. Mounting support: 35 x 7.5 / 35 x 15 mm Symmetrical DIN rail.
26. Operating Position: Vertical
27. Warranty: 18 Months
28. Code: ABL8WPS24400

PRODUCT FEATURES

1. This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage.
2. It has a rated input of 380V to 500V AC, a rated output current of 40A at 24V DC and a rated power output of 960W.
3. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water.
4. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers.
5. It has LED diagnostics indicator available in the front for troubleshooting instantly.
6. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process.
7. It installs on DIN rail and is 165mm-wide.
8. It weighs 2,700kg. It is a power supply for industrial use, rail mounting.
9. It conforms to UL 508, CSA C22.2 No 60950-1 standards.
10. The GV2ME07 thermal magnetic circuit breaker is recommanded for its protection.
11. It has LED diagnostics indicator available in the front for troubleshooting instantly.
12. It brings energy to your automated systems.
13. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
