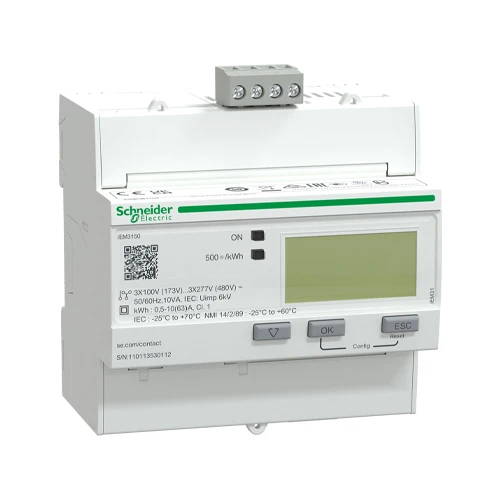

SCHNEIDER ENERGY METER

1. Range: Acti9.
2. Range of Product: Acti9 iEM3000.
3. Device short name: iEM3150.
4. Type of measurement: Active Energy, Current, Voltage, Active power.
5. Device application: Partial Meter, Sub Billing.
6. Input Type: Direct Input.
7. [In] Rated Current: 63 A.
8. Rated voltage: 100-277 V, 173-480 V.
9. Network Frequency: 50 Hz, 60 Hz.
10. Technology type: Electronic.
11. Display Type: LCD Display.
12. Sampling Rate: 32 samples/cycle.
13. Measurement Current: 0-63 A.
14. Maximum Value Measured: 99999999.9 kWh
15. Communication Port Protocol: Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none, insulation 4000 V
16. Communication Port Support: Screw terminal block: RS485
17. Local Signalling: Green indicator light: power ON, Yellow flashing LED: accuracy checking, Yellow indicator light: communications are active on the Modbus port (Modbus)
18. Mounting Mode: Clip-on
19. Mounting Support: DIN rail
20. Connections: Screw terminals 16 mm² cable(s)
21. Width: 90mm
22. Height: 95mm
23. Depth: 69mm
24. Weight: 260g
25. Warranty: 18 months
26. Code: A9MEM3150

PRODUCT FEATURES

1. The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display.
2. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators.
3. This meter can be used in sub-billing and partial metering applications.
4. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, and per IEC 61557-12.
5. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current.
6. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC.
7. Line rated current for this meter is up to 63A direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations.
8. Communication protocol is Modbus with screw terminal support. No secondary communication ports.
9. Certifications include EAC, CE and UL.
10. Compatible with power management software to take advantage of the IoT digital power installation.
