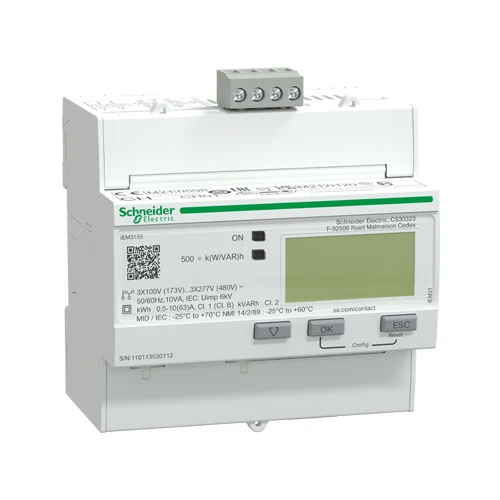

SCHNEIDER ENERGY METER

1. Range: Acti9.
2. Range of Product: Acti9 iEM3000.
3. Device Short Name: iEM3155.
4. Component type: Energy meter.
5. Type of measurement: Active and Reactive Energy, Active and Reactive Power., Current, Voltage.
6. Metering type: Active, Reactive, Apparent Energy (signed, four quadrant).
7. Device application: Multi-tariff, Sub Billing, Partial Meter.
8. Input Type: Direct input
9. [In] Rated Current: 63 A
10. Rated Voltage: 100-277 V, 173-480 V.
11. Network Frequency: 60 Hz, 50 Hz.
12. Technology Type: Electronic.
13. Display Type: LCD display.
14. Sampling Rate: 32 samples/cycle.
15. Measurement Current: 0-63 A.
16. Maximum Value Measured: 99999999.9 kWh.
17. Tariff Input: Tariff (4).
18. Communication Port Protocol: Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none, insulation 4000 V.
19. Communication Port Support :Screw terminal block: RS485.
20. Local signalling: Green indicator light: power ON, Yellow flashing LED: accuracy checking, Alarm: overload
21. Yellow indicator light: communications are active on the Modbus port (Modbus),
22. Number of Inputs: 1 digital 0…5 V/11…40 V 24 V DC.
23. Number of Outputs: 1 digital (static).
24. Output Voltage: 5…40 V DC@50 mA
25. Mounting Mode: Clip-on
26. Mounting Support: DIN rail
27. Connections: Screw terminals 16 mm² cable(s)
28. Colour: White
29. Width: 90mm
30. Height: 95 mm
31. Depth: 69 mm
32. Weight: 260g
33. Warranty: 18 months
34. Code: A9MEM3155

PRODUCT FEATURES

1. The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display.
2. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking, an overload alarm and communication indicators.
3. This meter can be used in sub-billing applications and supports 4 tariff schedules.
4. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, Active Energy: class B per EN 50470-3 and Active Energy: class 1 per IEC 61557-12.
5. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current.
6. With four quadrant Energy measurement. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC.
7. Line rated current for this meter is up to 63A direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations.
8. Communication protocol is Modbus with screw terminal support.
9. There is one programmable digital input and one programmable digital output that can be used as a pulsed output.
10.  Compatible with power management software to take advantage of the IoT digital power installation.
