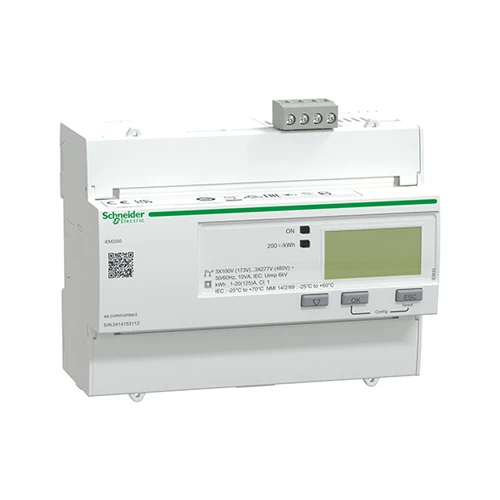

SCHNEIDER ENERGY METER

1. Range: Acti9
2. Range: Acti9 iEM3000
3. Short Name: iEM3100
4. Component Type: Energy meter
5. Poles: 1P + N / 3P /3P + N
6. Type of Measurement: Active Energy, Current, Voltage, Active Power
7. Device Application: Partial Meter / Sub Billing
8. Accuracy Class:
9. Class 1 active energy conforming to IEC 62053-21
10. Class 1 active energy conforming to IEC 61557-12
11. Class B active energy conforming to EN 50470-3
12. Input Type: Direct Input
13. [In] Rated Current: 125 A
14. Rated Voltage:
15. 100-277 V
16. 173-480 V
17. Network Frequency: 60 Hz / 50 Hz
18. Display: LCD display
19. Sampling Rate: 32 samples/cycle
20. Measurement Current: 0-125 A
21. Maximum Value Measured: 99999999.9 kWh
22. Local Signalling
23. Green Indicator Light: Power ON, Yellow flashing LED: accuracy checking
24. Mounting Mode: Clip-on
25. Mounting Support: DIN rail
26. Connections – Terminals: Screw Terminals 50 mm² cable(s)
27. IP Protection: IP40 front panel: conforming to IEC 60529, IP20 body: conforming to IEC 60529
28. Pollution degree
29. Colour: White
30. Width: 126 mm
31. Height: 103 mm
32. Depth: 69 mm
33. Warranty: 18 months
34. Code: A9MEM3350

PRODUCT FEATURES

1. The Acti9 iEM3000 series energy meters offer an attractive range of three-phase DIN rail-mounted energy meters with an LCD display.
2. Additional local signaling includes green LED power-on indicator, flashing yellow LED for accuracy checking and communication indicators.
3. This meter can be used in sub-billing and partial metering applications.
4. The meter provides the following accuracy classes: Active Energy: class 1 per IEC 62053-21, and per IEC 61557-12.
5. The meter will measure Active and Reactive Power, Active and Reactive Energy, Voltage and Current.
6. Designed for 50Hz or 60Hz networks, supply voltage can range from 100 to 277VAC or 173 to 480VAC.
7. Line rated current for this meter is up to 125A via direct connect and will support Single Phase and Neutral, Three Phase and Three Phase and Neutral configurations.
8. Communication protocol is Modbus with screw terminal support.
9. No secondary communication ports. Certifications include EAC, CE and UL.
10. Product dimensions are as follows: width 4.96 in (126 mm), depth 2.72in (69 mm), height 4.1 in (103 mm)
11. Product weight 9.17 oz (260 g).
12. Compatible with power management software to take advantage of the IoT digital power installation.
