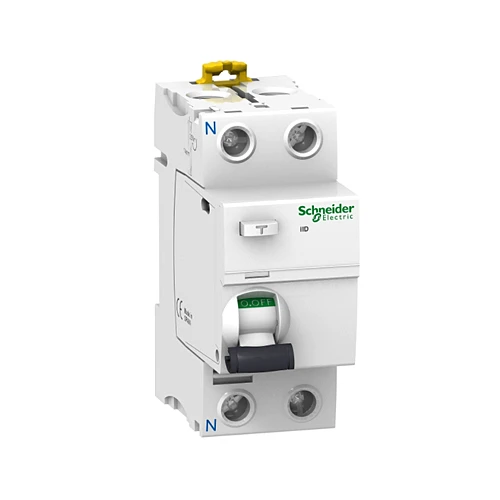

SCHNEIDER ACTI9 A9R11280 2 POLE 6KA 80AMP 30MA EARTH LEAKAGE

(0) 0 Reviews 0 Orders 0 Wish listed

R1,965.00

Quantity :
Total price :
  (Tax : )

SCHNEIDER ACTI9 EARTH LEAKAGE

  1. Range: Acti9
  2. Product Name: Acti9 iID
  3. Component Type: Residual Current Circuit Breaker (RCCB)
  4. Short Name: iID
  5. Poles: 2 Pole
  6. Neutral Position: Left
  7. [In] Rated Current: 80 Amp
  8. Earth-Leakage Sensitivity: 30 mA
  9. Earth-Leakage Protection Class: Type AC
  10. Code: A9R11280

PRODUCT FEATURES

  1. This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB).
  2. It is a 2P circuit breaker with In rated current of 80A, AC type protection class and a 30mA earth leakage sensitivity.
  3. This product protects against electrical shock by direct or indirect contact and fire hazards.
  4. It performs the function of disconnection of electrical circuits in case of earth fault.
  5. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face.
  6. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance.
  7. This product is compliant with EN/IEC 61008-1 standard.
  8. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A.
  9. The (Inc/IΔc) conditional rated short circuit current is 10kA.
  10. The electrical endurance is up to 10000 cycles.
  11. The mechanical endurance is up to 20000 cycles.
  12. The Ue operational voltage is 220VAC to 240VAC.
  13. The Ui rated insulation voltage is 500VAC.
  14. The Uimp rated impulse withstand voltage is 6kV.
  15. The frequency is 50Hz or 60Hz.
  16. It is DIN rail mountable.
  17. The product colour is white (RAL9003).
  18. The dimensions are (W) 36mm x (H) 91mm x (D) 73.5mm.
  19. It has an IP20 degree of protection.
  20. The operating temperature is from -5°C to 60°C.
  21. The storage temperature is from -40°C to 85°C.
