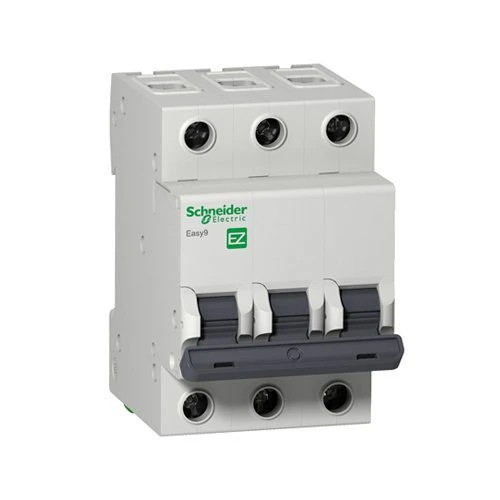

SCHNEIDER EASY9 EZ9F53363 3 POLE 3KA 63AMP CIRCUIT BREAKER

(0) 0 Reviews 0 Orders 0 Wish listed

R195.00

Quantity :
Total price :
  (Tax : )

SCHNEIDER EASY9 CIRCUIT BREAKER

  1. 63 AMP
  2. 3 POLE
  3. 3KA
  4. DIN RAIL
  5. CODE: EZ9F53363

PRODUCT FEATURES

  1. This Easy9 product is a low voltage miniature circuit breaker (MCB).
  2. It is a 3P circuit breaker with 3 protected poles and 63A In rated current and C tripping curve.
  3. The Icu rated short circuit breaking capacity is up to 3kA at 400VAC conforming to EN/IEC 60898-1 standard.
  4. It is compliant with IEC 60898-1 standard.
  5. This product has a protection against short circuit and a protection of cable against overloads.
  6. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved).
  7. This product is dedicated for residential and small commercial buildings.
  8. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles.
  9. The Ue operational voltage is 400VAC.
  10. The Ui rated insulation voltage is 500VAC.
  11. The Uimp rated impulse withstand voltage is 4kV.
  12. The operating frequency is 50Hz or 60Hz.
  13. It can be mounted on DIN rail for modular installation.
  14. The product colour is light grey (RAL7035).
  15. The dimensions are (W) 54mm x (H) 81mm x (D) 66.5mm.
  16. The weight is 0.3kg.
  17. The degree of protection is IP20.
  18. The operating temperature is -5°C to 60°C.
  19. The storage temperature is -40°C to 85°C.
