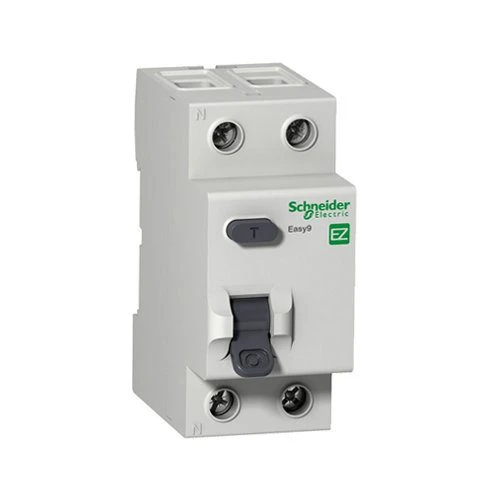

SCHNEIDER EASY9 EZ9R03263 2 POLE 3KA 63AMP EARTH LEAKAGE

(0) 0 Reviews 0 Orders 0 Wish listed

R405.00

Quantity :
Total price :
  (Tax : )

SCHNEIDER EASY9 EARTH LEAKAGE

  1. 63 AMP
  2. 2 POLE
  3. 3KA
  4. DIN RAIL
  5. CODE: EZ9R03263

PRODUCT FEATURES

  1. This product is a Easy9 residual current circuit breaker (RCCB).
  2. It is a 2P circuit breaker with 63A In rated current, a sensitivity of 30mA with a AC type protection class.
  3. This product protects against electrical shock by direct or indirect contact and fire hazards.
  4. It also has protection against fire hazards due to persistent earth fault current.
  5. This product has a positive contact indications with fault tripping indication on the front panel by the position of the handle (0-I engraved).
  6. This is dedicated for residential and small commercial buildings market segment.
  7. It is compliant with SANS 767 and IEC 61008-1 standard.
  8. The (Im/IΔm) rated breaking and making short circuit capacity is 500A.
  9. The (Inc/IΔc) conditional rated short circuit current is 3000A.
  10. The mechanical endurance is going up to 5000 cycles and electrical endurance going up to 2000 cycles.
  11. The Ue operational voltage is 230VAC.
  12. The Ui rated insulation voltage is 440VAC.
  13. The Uimp rated impulse withstand voltage is 4kV.
  14. The frequency is 50Hz.
  15. It is DIN rail mountable.
  16. The product color is light grey (RAL7035).
  17. The dimensions are (W) 36mm x (H) 82mm x (D) 72mm.
  18. The weight is 125g.
  19. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure.
  20. The operating temperature is from -5°C to 60°C.
  21. The storage temperature is from -40°C to 85°C.
