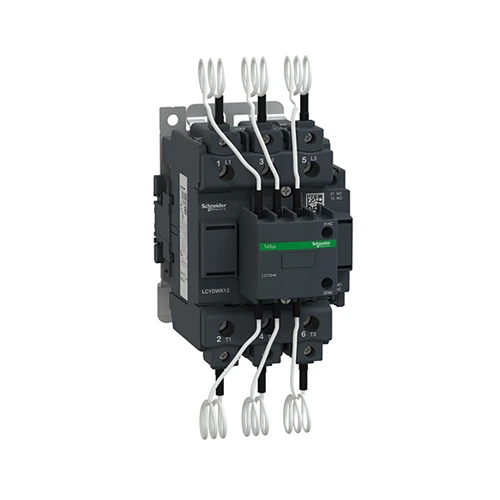

SCHNEIDER TESYS 3 POLE 63KVAR 400V (3NO) CONTACTOR

(0) 0 Reviews 0 Orders 0 Wish listed

R6,685.00

Quantity :
Total price :
  (Tax : )

SCHNEIDER TESYS D CAPACITOR CONTACTOR

  1. Range: TeSys
  2. Product Name: TeSys LC1D.K / TeSys Deca
  3. Component Type: Capacitor Duty Contactor
  4. Short Name: LC1DWK
  5. Device Application: Control
  6. Contactor Application: Power Factor Correction
  7. Poles: 3 Pole
  8. Power Pole Contact Composition: 3 NO
  9. [Ue] Rated Operational Voltage: Power Circuit: 690 V AC 50/60 Hz
  10. Reactive power rating @ 60°C:
  11. 35 kvar at 230 V AC 50 Hz
  12. 63 kvar at 400 V AC 50 Hz
  13. 67 kvar at 440 V AC 50 Hz
  14. 104 kvar at 690 V AC 50 Hz
  15. 30 kvar at 230 V AC 60 Hz
  16. 60 kvar at 460 V AC 60 Hz
  17. 80 kvar at 575 V AC 60 Hz
  18. Auxiliary Contact Composition: 1 NO + 2 NC Instantaneous
  19. Warranty: 18 months
  20. Code: LC1DWK12V7

PRODUCT FEATURES

  1. TeSys Deca contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 63kVAR@400V 50Hz (104kVAR@690V).
  2. It provides a 400V 50/60 Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation.
  3. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability.
  4. Compact (85mm width), DIN-rail mounting or screw fixing.
  5. Multi standards certified (IEC, UL, CSA) and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
