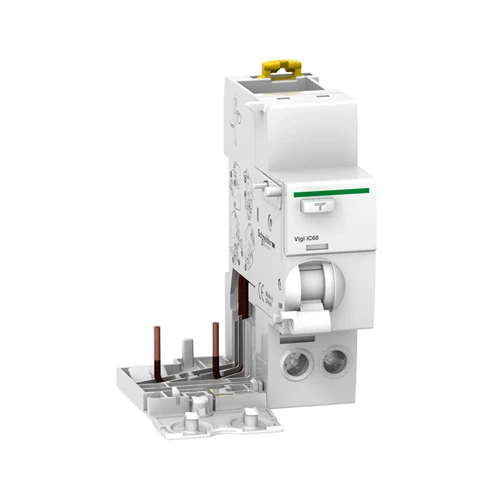

SCHNEIDER VIGI IC60 A9V41240 2 POLE 40AMP EARTH LEAKAGE ADD-ON BLOCK

(0) 0 Reviews 0 Orders 0 Wish listed

R2,940.00

Quantity :
Total price :
  (Tax : )

SCHNEIDER EARTH LEAKAGE ADD-ON BLOCK

  1. RANGE: ACTI9
  2. SHORT NAME: VIGI IC60
  3. AMPS: 40 AMP
  4. POLES: 2 POLE
  5. KA RATING: 6 KA
  6. SENSITIVITY: 30mA
  7. 18 MONTH WARRANTY
  8. CODE: A9V41240

PRODUCT FEATURES

  1. This Acti9 Vigi iC60 is a modular add-on residual current devices.
  2. It is a 2P, rated current is 63A, operating voltage is 230VAC to 240VAC according to IEC 61009-1.
  3. The earth leakage protection class is AC type with a sensitivity of 30mA and a voltage independent technology.
  4. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards.
  5. A VisiTrip window is here to indicate a fault tripping by a red mechanical indicator on the front face.
  6. It can be combined with iC60 or Acti9 Reflex iC60, to provide protection of persons and protection of installations.
  7. This product is compliant with EN 61009-1 and IEC 61009-1 standard.
  8. The Ue rated operational voltage is 230VAC to 240VAC.
  9. The Ui rated insulation voltage is 500VAC.
  10. The Uimp rated impulse withstand voltage is 6kV.
  11. The pollution degree is 3.
  12. It can be mounted on DIN rail.
  13. The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm.
  14. The weight is 0.165kg.
  15. The degree of protection is IP20.
  16. The operating temperature -5°C to +60°C.
  17. The storage temperature is -40°C to +85°C.
