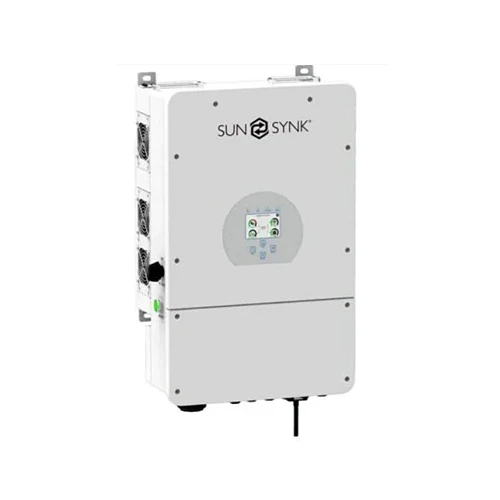

SUNSYNK 50KW 3 PHASE 48V HYBRID INVERTER

(0) 0 Reviews 0 Orders 0 Wish listed

R116,665.00

Quantity :

Total price :

(Tax : )

Overview
Reviews

SUNSYNK HYBRID INVERTER

RATED POWER: 50 000W
MIN PPT VOLTAGE: 150V
MAX PPT VOLTAGE: 850V
MAX INPUT VOLTAGE: 1000V
MAX DC POWER: 65 000W
MAX AC POWER: 55 000W
SURGE AC POWER: 75 000W
MAX DC CURRENT: 144A
MAX DC INPUTS: 8
MPPT QUANTITY: 4
CONNECTORS: MC4
EFFICIENCY: 99.9%
WEIGHT: 75KG

Product Features

The Sunsynk 50kW three phase high voltage hybrid Inverter is the ideal commercial inverter for managing power flow from multiple sources such as solar, main electrical grid and generator.
Four MPPT trackers giving allowance to flexible PV array configurations.
Allows DC oversizing up to 30% more than the rated AC power.
Unit can be operated without batteries (using PV and grid power).
Supports Wi-Fi remote monitoring as standard.
Type II DC/AC SPD as standard.
Overload, Over Temperature and Short Circuit Protection as standard.
Up to 5 x 50kW inverters can be connected in a parallel configuration, with each inverter having its own batteries connected to it.

PLEASE NOTE:

For systems containing high voltage batteries or inverters requiring a high voltage DC battery supply greater than 48V, the following is required and should be supplied:

Installer must be a 3-Phase Electrician registered with Department of Labour (red seal).
Installer must have product specific training prior to installation.
Specific manufacturers may require training prior to installation for warranty conditions.
All installer companies must adhere to the above, non-compliance will lead to product warranty invalidation
